SvGrid Studio

Studio is the grid-centric data-app layer in @svgrid/enterprise: turn a database or schema into a production-ready CRUD screen - grid, edit form, and SvelteKit API route - in seconds. One EntitySchema drives the grid columns, the edit form, validation, and the generated code.

It is part of the Enterprise license and is soft-gate only - everything runs unlicensed, it just nudges. See licensing.

Just want to run it? One command scaffolds a complete, working app - no manual setup, no database required:

npm create @svgrid/studio@latest my-app
cd my-app && npm install && npm run dev

You'll be asked to pick a theme (one of @svgrid/grid's 19 built-in presets) and light or dark mode - or skip the prompts with -- --theme material --dark. Open http://localhost:5173 and you have a real SvelteKit app - nav shell, Customers and Orders screens (linked by a searchable lookup), grid + modal create/edit/delete, seeded data. Nothing to configure. See Getting started for what to do next.

Want to build it yourself, step by step? Follow the Getting started guide - from an empty app to a working Customers screen, no prior SvGrid experience assumed.

Prefer not to write code? Build the same app visually - point, click, preview, then press one button to generate it. Try it right now, no install, at svgrid.com/studio - or see Launch the designer for the local CLI version (auto-saves to disk, generates straight into a folder), or open a one-click sample app.

Live demos: Live SQL (the whole stack over real Postgres in the browser via PGlite) · Supabase (your own hosted Postgres, straight from the browser) · Chart (a live chart panel beside the grid; click to filter).

A CRUD app in under a minute

This assumes you already have a SvelteKit app and a customers table in your database. Starting from nothing? Use Getting started instead - it builds the same screen from an empty folder, no database required.

npm i @svgrid/grid @svgrid/enterprise pg   # pg = driver for your database
npx @svgrid/studio add customers --db postgres --url "$DATABASE_URL"
npm run dev            # open /customers

add customers introspects the customers table and writes three files - the entity schema, a SvelteKit +server.ts API route, and a +page.svelte screen - giving you a working /customers page with search, sort, pagination, multi-select delete, and create/edit. Re-running add is safe: only the svgrid:managed regions are regenerated.

The grid themes its own borders, backgrounds, and hover states out of the box. Font is the one thing it inherits from your page rather than forcing - if your app doesn't set one yet (a bare npx sv create scaffold doesn't), add a body { font-family: ... } rule or a --sg-font token, or the screen renders in the browser's default serif font.

How it fits together

One EntitySchema is the single source of truth. The grid columns, the edit form, the dashboard, the generated SvelteKit code, and the data layer all derive from it - so a change to the schema flows everywhere at once.

New here? Concepts walks this picture end to end and defines every Studio term (screen, block, project model, managed region).

Data binding options

Studio binds a screen to data through one small contract - ServerDataSource (read + create + update + delete). Every option below implements it, so the grid, form, sorting, filtering, and pagination work identically no matter where the data lives. Pick your source:

New to how binding works? Start with Data binding - the ServerDataSource contract and how sort / filter / page / CRUD flow.

Three ways to build

All three produce the same output, because they share one scaffold() core.

1. CLI - npx @svgrid/studio add ... (deterministic, no AI required).

2. AI / MCP - with @svgrid/mcp configured, ask your agent (Claude Code, Cursor, ...) to build a screen for a table; it calls introspect_source -> scaffold_entity, and the output is compile-verified before it's written.

3. Visual app designer - run npx @svgrid/studio designer to open the full app builder (SvStudioDesigner): compose grids, charts, dashboards, boards, schedulers, and master-detail across many entities and screens, bind each to real data, write code-behind, and click Generate app. This is the rich, multi-screen builder you see when you launch Studio.

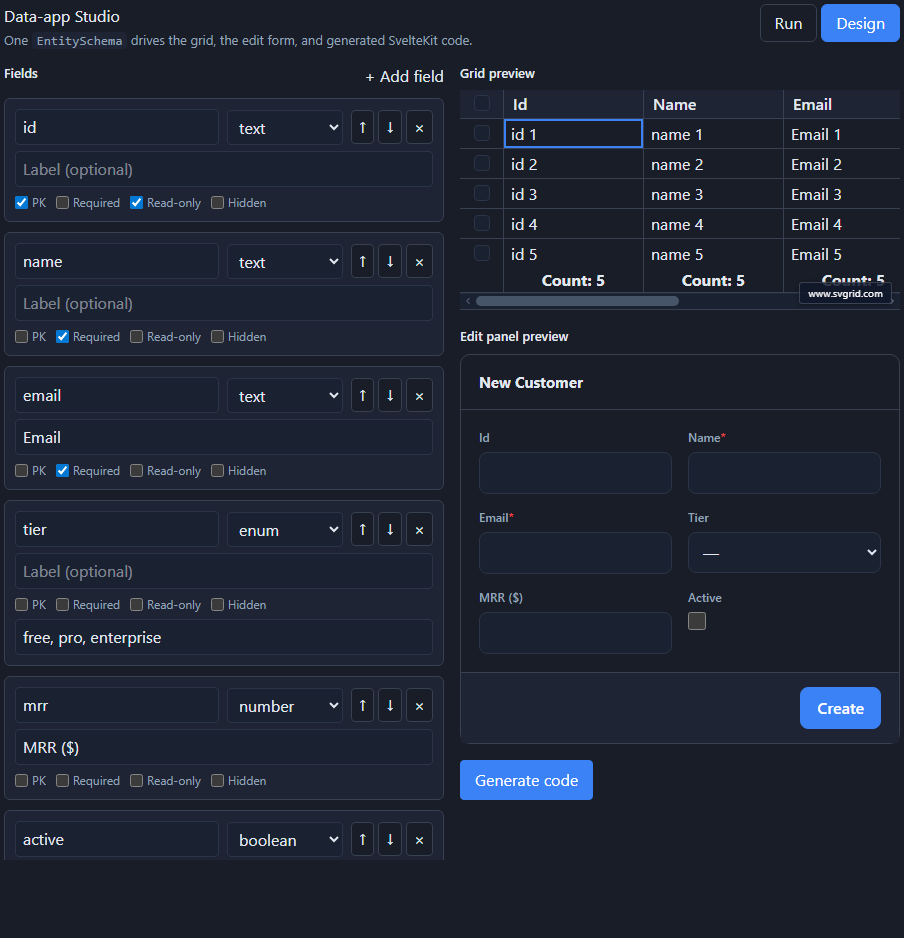

Want to embed a schema editor in your own app instead? The <SvSchemaDesigner> component is a smaller, single-entity widget - author one entity's fields + validation with a live grid

• form preview, and you own where the schema is stored.

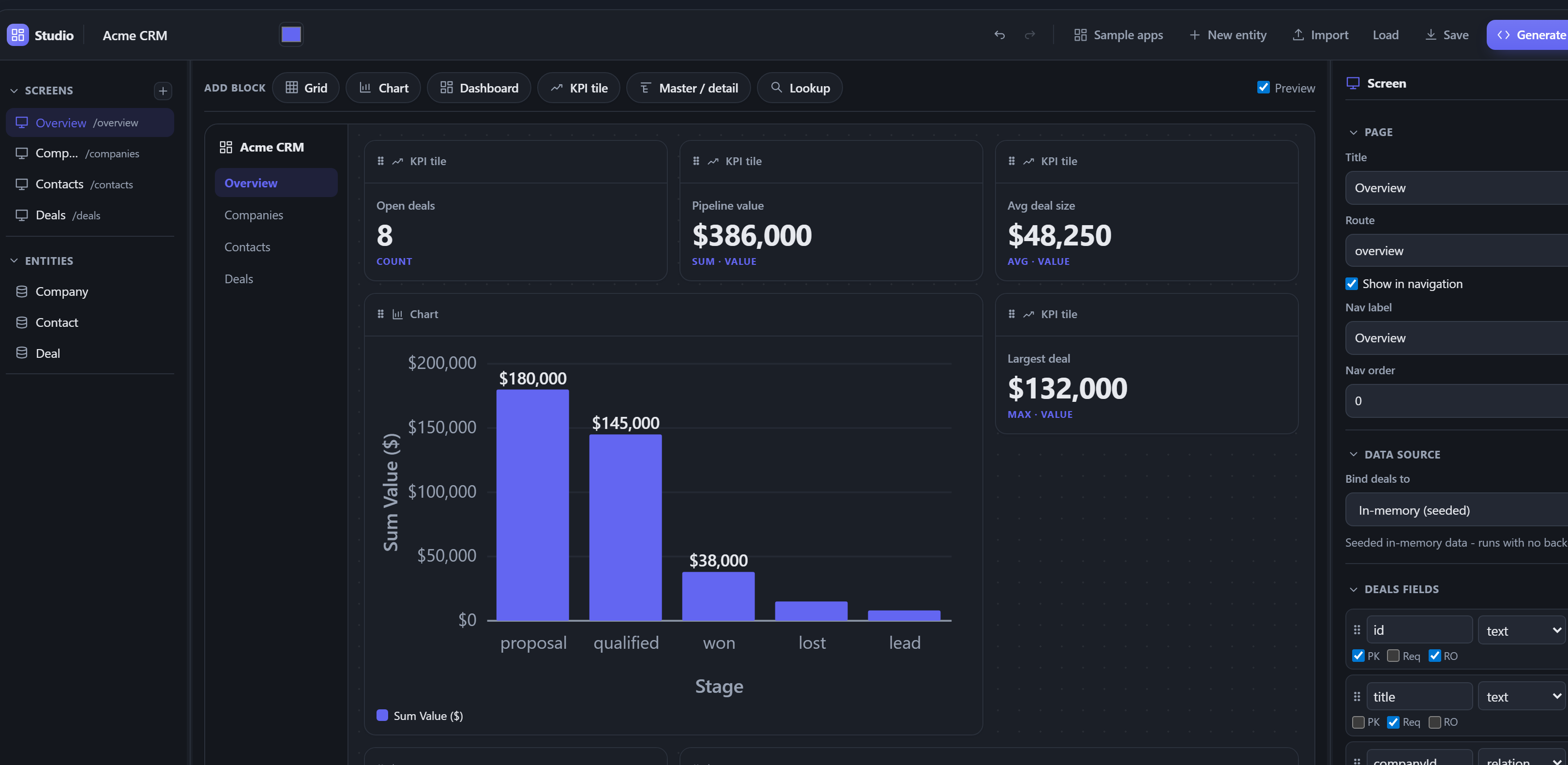

Here a ready-made CRM sample is open in the app designer - a forecast dashboard with KPI tiles and deal-value charts, all built by pointing and clicking, no code:

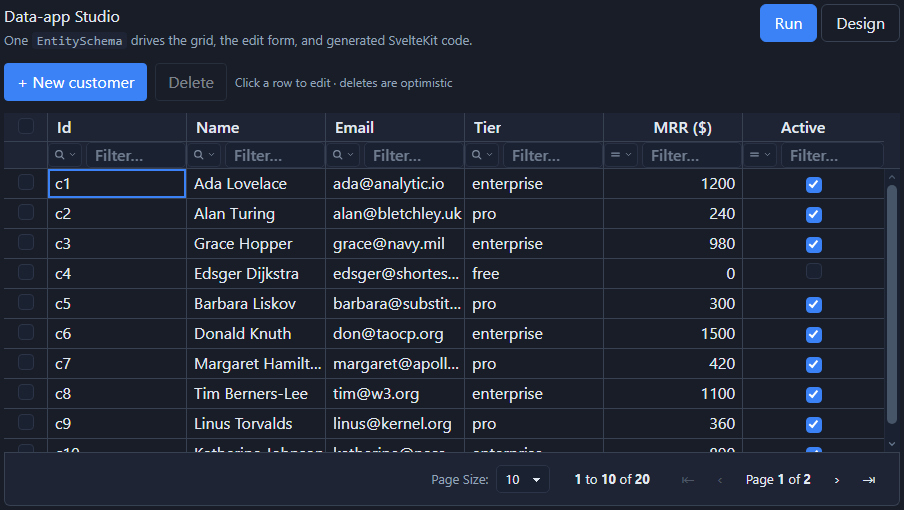

What you get in a generated screen

A shippable data screen, not a stub:

• Grid with server-side sort, filter, global search, and columns that fit the width.
• Native pagination footer driven by the server row count.

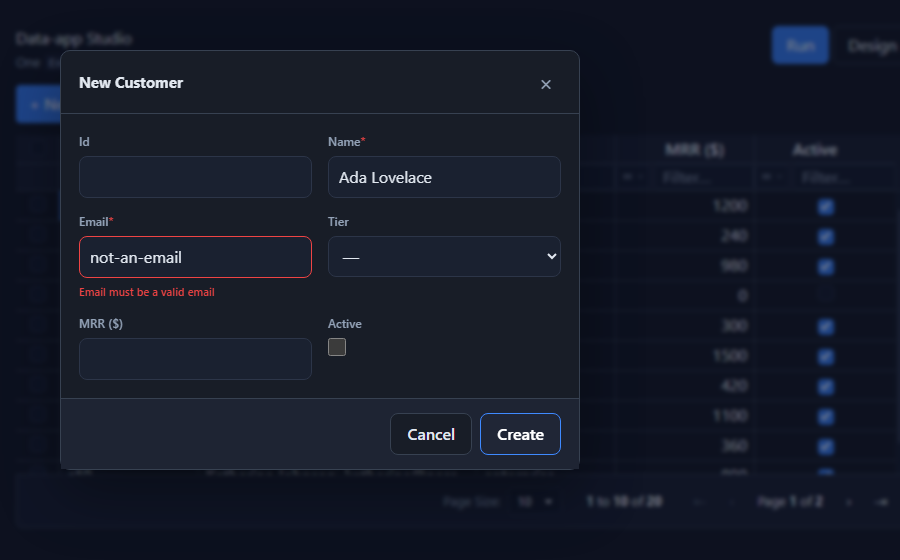

• Create / edit in a themed modal or slide-over panel with built-in validation (required, email/URL, min/max, length, regex, plus any Zod / Standard Schema validator you add).
• Multi-select delete with optimistic updates (rows change instantly, roll back on error).
• Loading, error, and empty states, light/dark theming via the grid tokens.

The building blocks (use them directly)

The grid renders its own sort, filter, and pagination UI in server mode via externalSort / externalFilter / externalPagination - you pass rowCount and pageIndex, it emits change events, you fetch the page.

Production & enterprise ready

• Real code, no lock-in - Studio generates plain SvelteKit files you own and can edit. There is no runtime, no proprietary host.
• No telemetry, no network calls - licensing is validated locally (details); nothing phones home.
• Parameterized SQL - every value is bound, and identifiers come from the schema-whitelisted plan, so there is no injection surface in the data layer.
• SvelteKit-native - server load / actions, $lib, SSR-safe, idiomatic Svelte 5 runes.
• Bring your own key - the AI generator uses your own model API key; your data and schema never touch our servers.
• One license - Studio is part of the Enterprise license; no separate SKU.
