Lazy-Loading Master-Detail Content in SvGrid

Fetch detail-panel data only when a row is expanded, cache the results, and cancel abandoned requests - keeping a large grid fast without paying for panels no one views.

A grid with 2,000 orders should not fire 2,000 API calls. Yet that is exactly what happens when detail panels load up front. The fix is straightforward: fetch only when someone actually expands a row, cache results so collapsing and re-expanding costs nothing, and cancel any in-flight request if the user changes their mind before data arrives.

This pattern is not complex, but there are a few places to get it wrong. Here is a solid recipe that handles all three concerns.

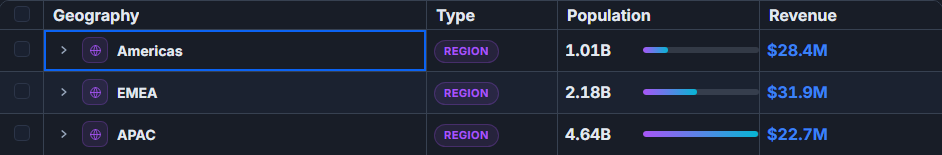

Lazy-loaded tree branches in SvGrid Detail data fetched only on expand, cached on subsequent opens.

Why up-front loading fails at scale

The intuitive approach is to prepare detail data for every row when the grid initializes. It works fine on a demo dataset of 20 rows. At 500 rows it bogs down the page load. At 5,000 it makes the grid unusable.

The root problem is that a user typically opens a handful of rows - rarely more than a dozen in a session. Loading detail for every row to support those few is wasteful by definition. The fix is demand-driven loading: nothing fetches until the row actually opens.

Fetching on expand with Svelte's await block

SvGrid passes a row object into your detail snippet. That is the trigger point. Wrap the fetch in {#await} and Svelte handles the three states - loading, success, and error - without any extra state variables:

<script lang="ts">
  import SvGrid from '@svgrid/grid'
  import type { ColumnDef } from '@svgrid/grid'
  import type { Order, LineItem } from '$lib/types'

  const orderColumns: ColumnDef[] = [
    { id: 'id',       field: 'id',       header: 'Order ID', width: 120 },
    { id: 'customer', field: 'customer', header: 'Customer',  width: 200 },
    { id: 'total',    field: 'total',    header: 'Total',     width: 100, type: 'number' },
    { id: 'status',   field: 'status',   header: 'Status',    width: 120 },
  ]

  const lineItemColumns: ColumnDef[] = [
    { id: 'sku',      field: 'sku',      header: 'SKU',       width: 140 },
    { id: 'name',     field: 'name',     header: 'Product',   width: 240 },
    { id: 'qty',      field: 'qty',      header: 'Qty',       width: 80,  type: 'number' },
    { id: 'price',    field: 'price',    header: 'Unit Price', width: 110, type: 'number' },
  ]

  const { data: orders } = $props<{ data: Order[] }>()
</script>

{#snippet detailPanel({ row }: { row: Order })}
  {#await fetchLineItems(row.id)}
    <div class="detail-placeholder">
      <span class="spinner"></span> Loading line items...
    </div>
  {:then items}
    <div class="detail-inner">
      <SvGrid data={items} columns={lineItemColumns} rowHeight={28} />
    </div>
  {:catch err}
    <div class="detail-error">
      Failed to load. <button onclick={() => retryFor(row.id)}>Try again</button>
    </div>
  {/await}
{/snippet}

<SvGrid
  data={orders}
  columns={orderColumns}
  rowHeight={36}
  detail={detailPanel}
/>

The grid renders immediately. fetchLineItems does not run until the user expands a row. Svelte's reactive {#await} block takes care of the rest.

Caching so the second open is instant

The snippet above re-fetches every time a row is expanded. Collapsing and re-opening the same order should not round-trip to the server again. The cleanest way to prevent that is to cache the promise, not the result:

// lib/line-item-cache.ts
const cache = new Map<string, Promise<LineItem[]>>()

export function fetchLineItems(orderId: string): Promise<LineItem[]> {
  if (!cache.has(orderId)) {
    cache.set(orderId, fetchFromApi(orderId))
  }
  return cache.get(orderId)!
}

async function fetchFromApi(orderId: string): Promise<LineItem[]> {
  const res = await fetch(`/api/orders/${orderId}/line-items`)
  if (!res.ok) throw new Error(`HTTP ${res.status}`)
  return res.json()
}

// Call this if the user edits an order and you need to bust the cache
export function invalidate(orderId: string) {
  cache.delete(orderId)
}

Caching the promise (not the resolved data) means two expansions that fire before the first fetch completes both get the same promise - no duplicate requests. It is a subtle point that matters in grids where someone can expand rows rapidly.

Cancelling abandoned requests

Users scroll fast. Someone might expand row 47, start reading, then collapse it and jump to row 120. If the line-items request for row 47 is still in flight, it is waste. Cancel it.

// lib/line-item-cache.ts (revised to support cancellation)
const cache = new Map<string, Promise<LineItem[]>>()
const controllers = new Map<string, AbortController>()

export function fetchLineItems(orderId: string): Promise<LineItem[]> {
  if (cache.has(orderId)) return cache.get(orderId)!

  const controller = new AbortController()
  controllers.set(orderId, controller)

  const promise = fetch(`/api/orders/${orderId}/line-items`, {
    signal: controller.signal,
  })
    .then(res => {
      if (!res.ok) throw new Error(`HTTP ${res.status}`)
      return res.json() as Promise<LineItem[]>
    })
    .finally(() => {
      controllers.delete(orderId)
    })

  cache.set(orderId, promise)
  return promise
}

export function cancelFetch(orderId: string) {
  controllers.get(orderId)?.abort()
  // Remove from cache so a future expand retries cleanly
  cache.delete(orderId)
}

export function invalidate(orderId: string) {
  cancelFetch(orderId)
}

Wire cancelFetch into a collapse handler if you want strict cancellation. In practice, aborting only matters for slow connections or very large payloads - for sub-200ms API responses, the extra plumbing may not be worth it. Know your p99 latency before adding complexity.

How this interacts with row virtualization

SvGrid virtualizes rows by default. Only the rows currently visible in the viewport render - detail snippets included. That means an expanded row that scrolls out of view unmounts its detail panel, and when it scrolls back in, {#await} re-runs. With caching in place, re-running hits the cache immediately and the panel appears without a flash or refetch.

Without caching, every re-enter into the viewport triggers a fresh request. On a fast connection you might not notice. On a slow one, or when the detail panel contains a nested grid that itself needs settling time, the repeated fetch becomes visible jank. Cache the promise.

Nested grids inside detail panels

If the detail content is itself a <SvGrid> (orders -> line items, accounts -> transactions), there is one sizing concern worth knowing: the outer grid does not know the inner grid's height until it renders. Set an explicit height on the detail panel container so the outer grid can allocate space cleanly:

{#snippet detailPanel({ row }: { row: Order })}
  {#await fetchLineItems(row.id)}
    <div style="height: 160px;" class="detail-placeholder">Loading...</div>
  {:then items}
    <div style="height: 160px; overflow: hidden;">
      <SvGrid data={items} columns={lineItemColumns} rowHeight={28} />
    </div>
  {:catch}
    <div style="height: 40px;" class="detail-error">Load failed.</div>
  {/await}
{/snippet}

A fixed height also avoids layout shifts when data arrives - the outer grid reserves the space during the loading state and nothing reflows when items populate the inner grid.

When to skip caching

Short sessions, frequently updated data, or detail panels where freshness matters more than speed. If your order line items can change in the seconds between a user opening and closing a row, stale cache is a real risk. In that case, either skip the cache entirely or pair it with a short TTL:

const cache = new Map<string, { promise: Promise<LineItem[]>, ts: number }>()
const TTL = 30_000 // 30 seconds

export function fetchLineItems(orderId: string): Promise<LineItem[]> {
  const entry = cache.get(orderId)
  if (entry && Date.now() - entry.ts < TTL) return entry.promise

  const promise = fetch(`/api/orders/${orderId}/line-items`).then(r => r.json())
  cache.set(orderId, { promise, ts: Date.now() })
  return promise
}

Thirty seconds is usually enough to cover the "collapse and immediately re-open" case while keeping data reasonably fresh. Adjust based on how often your backend data actually changes.

The core principle stays constant: pay for only what the user looks at, serve it instantly if they look again, and clean up what they walked away from.
