Automations

An automation does something on its own when something happens to a record: a task set to Done ticks its Done box, a new request goes to Todo, a blocked task tells its owner, a button starts the work. Each table of a base has its own, under "Automations" in the view bar.

In the demo, set a task's Status to Done, press Start in the Kick off column, or send the Request a task form, then open "5 automations" and look at Runs.

Add one

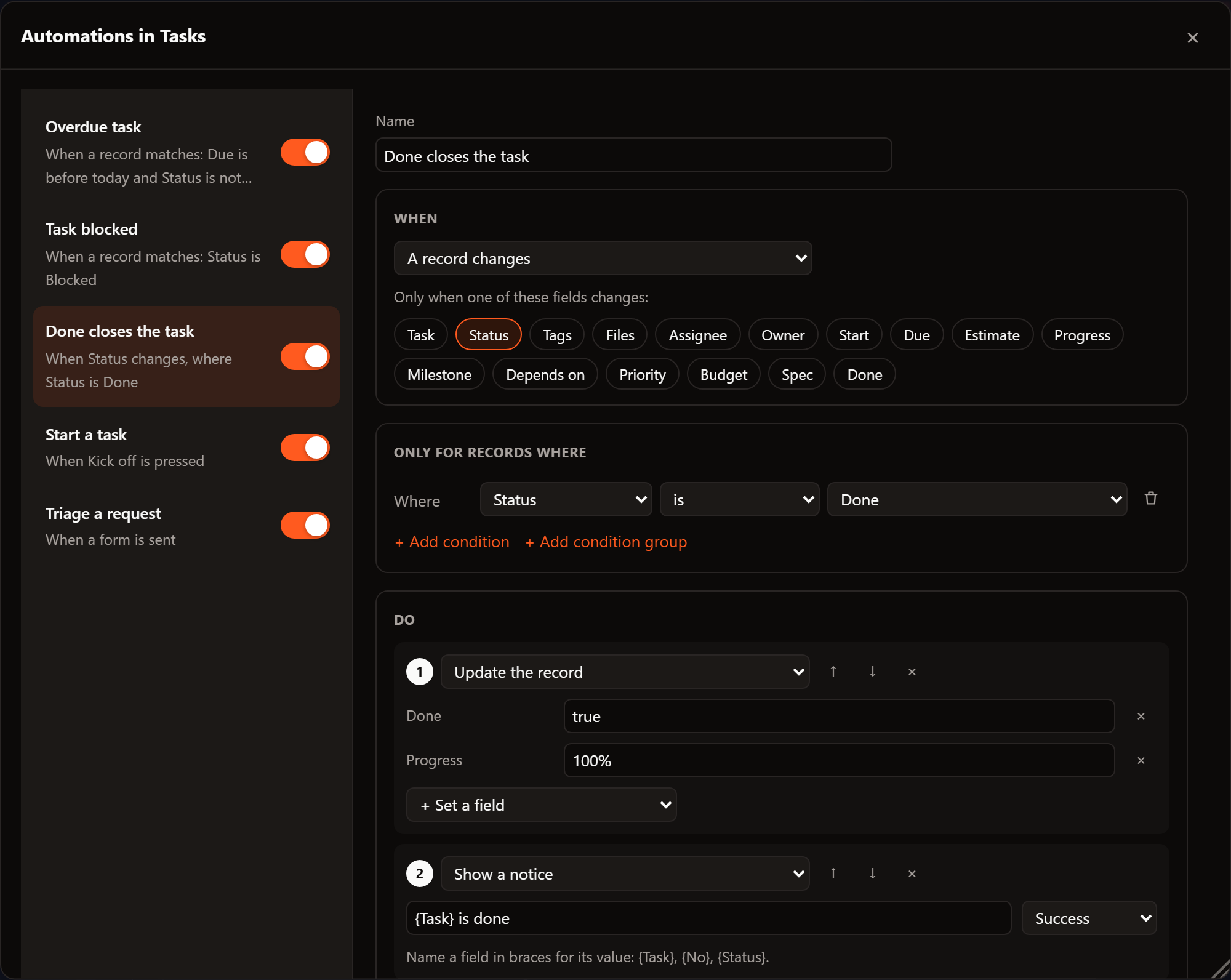

Open "Automations" in the view bar and press "+ New automation". The dialog has three parts:

• When: what sets it off.
• Only for records where: a condition written with the view bar's filter, so it compares a select's option, a person, a linked record's name or "within the past week" the way the filter does. Leave it empty for every record.
• Do: the actions, in order.

Every change is kept as you make it. "Run now" tries the automation on the record you pick, as if its trigger had happened.

When

A paste or a fill that changes several cells of one record is one change to it.

Do

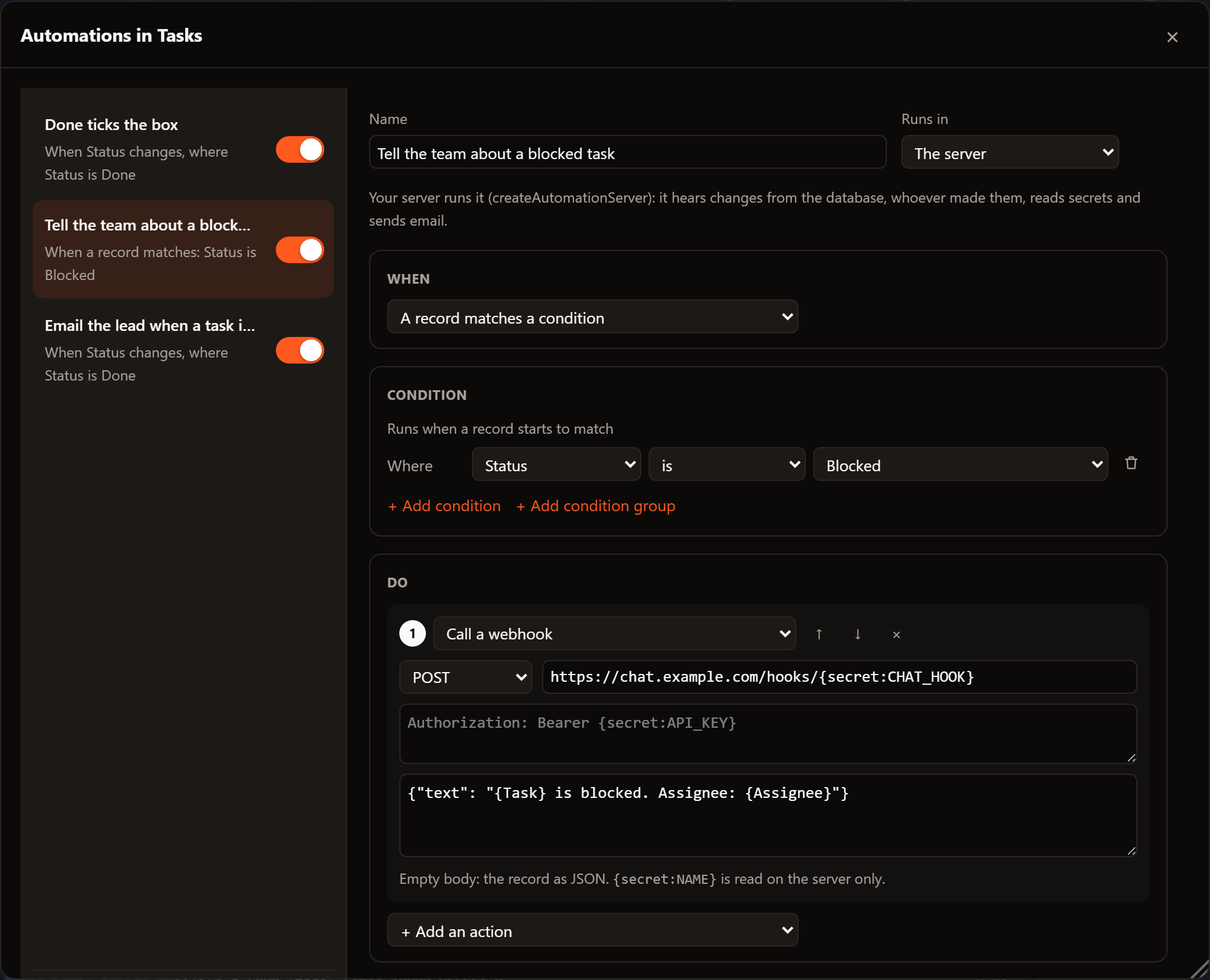

A webhook's URL, headers and body name fields in braces, and secrets as {secret:NAME}; leave the body empty to send the record as JSON:

Values are written as the field shows them:

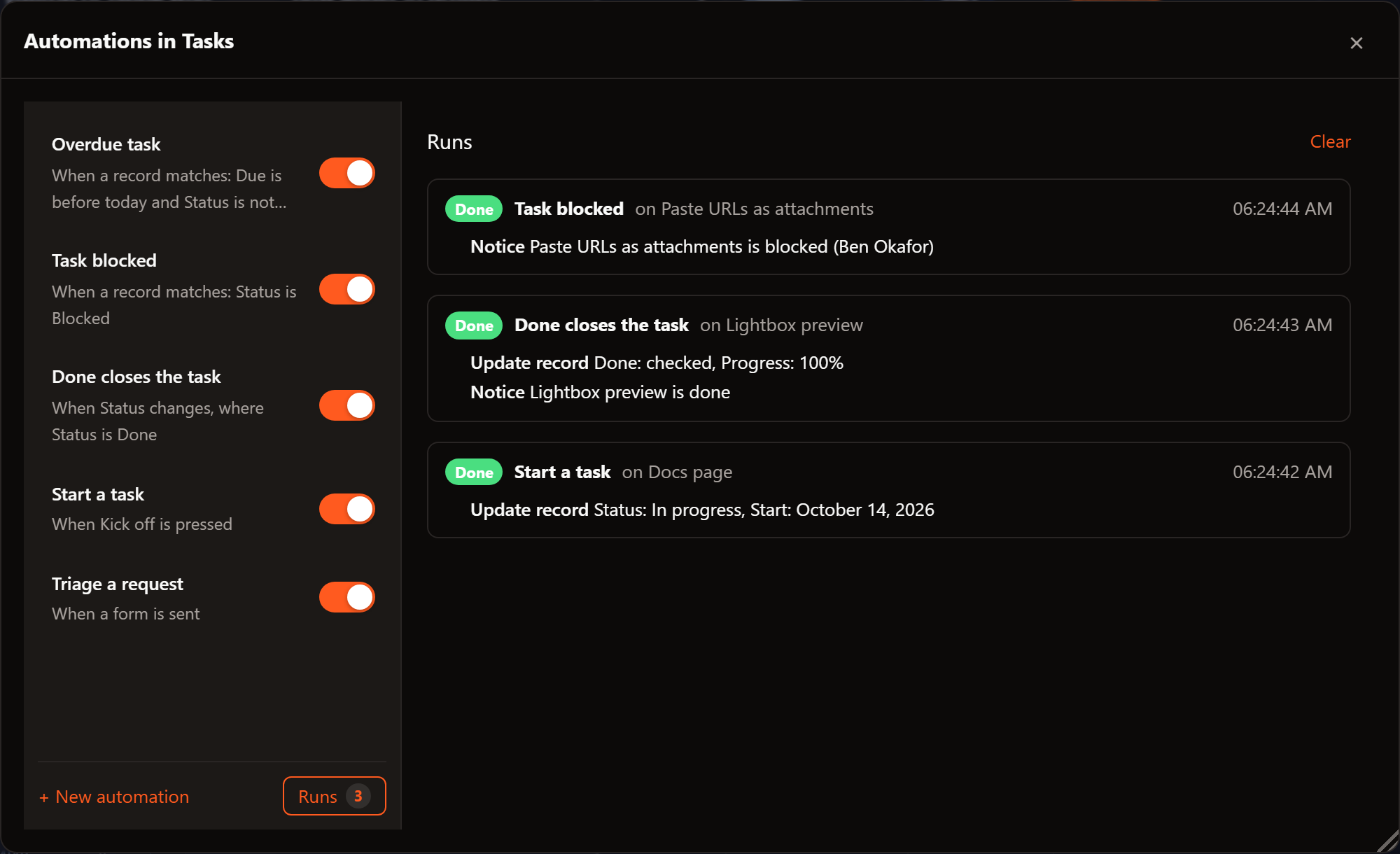

Runs

Every run is listed under Runs, newest first, with what each action did and the record it ran on. A failed action stops the run there and says why.

In code

A table's automations are its automations, plain data you can store with the rest of the table:

import type { BaseAutomation } from '@svgrid/enterprise/base'

const statusIs = (value: string) => ({
  kind: 'fieldFilter' as const,
  conjunction: 'and' as const,
  conditions: [{ column: 'status', kind: 'select' as const, op: 'is' as const, value }],
})

export const taskAutomations: BaseAutomation[] = [
  {
    id: 'done',
    name: 'Done closes the task',
    enabled: true,
    trigger: { type: 'recordUpdated', fields: ['status'] },
    condition: statusIs('Done'),
    actions: [
      { type: 'updateRecord', values: { done: 'true', progress: '100%' } },
      { type: 'notify', message: '{Task} is done', severity: 'success' },
    ],
  },
  {
    id: 'blocked',
    name: 'Open an issue for a blocked task',
    enabled: true,
    trigger: { type: 'recordMatches' },
    condition: statusIs('Blocked'),
    actions: [{ type: 'createRecord', table: 'issues', values: { title: 'Unblock {Task}', owner: '{Assignee}' }, linkField: 'task' }],
  },
]

<script lang="ts">
  import { SvToaster } from '@svgrid/grid'
  import { SvBase, enableBase, type BaseTable } from '@svgrid/enterprise/base'
  import { taskAutomations } from '$lib/automations'

  enableBase()
  let { tasks, issues }: { tasks: BaseTable; issues: BaseTable } = $props()
  let tables = $state.raw([{ ...tasks, automations: taskAutomations }, issues])
</script>

<SvBase bind:tables editable onTablesChange={(t) => console.log('save', t)} />
<SvToaster />

Automations edited in the dialog reach onTablesChange with the rest of the table. Automations need <SvBase tables>; one table is a list of one. Notices need one <SvToaster /> in the app.

Your own actions

registerAutomationAction adds an action to the dialog's list. It runs in the page, so call your own server for anything that needs a secret:

import { registerAutomationAction } from '@svgrid/enterprise/base'

registerAutomationAction('post-to-chat', {
  label: 'Post to the team chat',
  run: async ({ record, text }) => {
    if (!record) return 'No record'
    const res = await fetch('/api/chat', {
      method: 'POST',
      headers: { 'content-type': 'application/json' },
      body: JSON.stringify({ message: `${text('Task')} needs a hand (${text('Assignee')})` }),
    })
    if (!res.ok) throw new Error(`Chat answered ${res.status}`)
    return 'Posted'
  },
})

An automation runs it with { type: 'run', action: 'post-to-chat' }. What it returns is the run's detail; what it throws is the run's error.

Where they run

Each automation says where it runs, under "Runs in":

• This browser (the default): in the page of the person who made the change, right away and once. A change that arrives from someone else through realtime does not run it again in your page. Scheduled ones run while the base is open.
• The server: in your server, for every change to the database, whoever or whatever made it, with secrets and email. Set it up as below.

Either way, a change an automation makes is an ordinary change: with a source, it is written to the database like an edit. What an action changes can set off other automations, up to four deep; past that the run stops and says so, so two automations that answer each other cannot loop.

On the server

createAutomationServer runs the automations set to "The server". It reads the same tables, with the same automations, through sources of its own. Keep the tables in one module both sides import, each side handing in its own way to reach the data:

// src/lib/tables.ts: the tables, for the browser and for the server.
import { baseSource, type BaseTable } from '@svgrid/enterprise/base'
import type { ServerDataSource } from '@svgrid/grid'

export function trackerTables(source: (table: string) => ServerDataSource<Record<string, unknown>>): BaseTable[] {
  return [
    {
      id: 'tasks',
      name: 'Tasks',
      primaryField: 'name',
      data: [],
      columns: [
        { field: 'name', header: 'Task', fieldType: 'text' },
        { field: 'status', header: 'Status', fieldType: 'singleSelect', fieldProps: { options: [{ value: 'Todo' }, { value: 'Blocked' }, { value: 'Done' }] } },
        { field: 'owner_email', header: 'Owner email', fieldType: 'email' },
      ],
      automations: [
        {
          id: 'blocked',
          name: 'Tell the team about a blocked task',
          enabled: true,
          runOn: 'server',
          trigger: { type: 'recordMatches' },
          condition: { kind: 'fieldFilter', conjunction: 'and', conditions: [{ column: 'status', kind: 'select', op: 'is', value: 'Blocked' }] },
          actions: [
            { type: 'webhook', url: 'https://hooks.slack.com/services/{secret:SLACK_HOOK}', body: '{"text": "{Task} is blocked"}' },
            { type: 'email', to: '{Owner email}', subject: '{Task} is blocked', body: 'Someone marked {Task} as blocked.' },
          ],
        },
      ],
      source: baseSource(source('tasks')),
    },
  ]
}

The server side, in a SvelteKit app:

// src/lib/server/automations.ts
import pg from 'pg'
import { createAutomationServer } from '@svgrid/enterprise/base'
import { createSqlDataSource, type EntitySchema } from '@svgrid/enterprise'
import { env } from '$env/dynamic/private'
import { trackerTables } from '$lib/tables'

const pool = new pg.Pool({ connectionString: env.DATABASE_URL })
const schemas: Record<string, EntitySchema> = {
  tasks: {
    name: 'tasks',
    fields: [
      { field: 'id', type: 'text', primaryKey: true },
      { field: 'name', type: 'text' },
      { field: 'status', type: 'text' },
      { field: 'owner_email', type: 'text' },
    ],
  },
}

// Your mail provider's client.
declare const mailer: { send: (m: { from: string; to: string[]; subject: string; text: string }) => Promise<unknown> }

export const automations = createAutomationServer({
  tables: trackerTables((table) =>
    createSqlDataSource({
      schema: schemas[table]!,
      table,
      dialect: { placeholders: '$', ilike: true },
      execute: async (sql, params) => (await pool.query(sql, params)).rows,
    }),
  ),
  // {secret:SLACK_HOOK} in a webhook reads SLACK_HOOK from the environment.
  secrets: (name) => env[name],
  sendEmail: (m) => mailer.send({ from: '[email protected]', ...m }),
  onRun: (run) => {
    if (run.status !== 'ok') console.error('automation failed', run)
  },
})

Then tell it about changes, in whichever way fits your app:

• Through your endpoint. Pass its audit hook to createKitHandlers: every create, update and delete through the endpoint reaches it, with the record as stored. It compares with what it read last, so it needs a server that stays up between requests.

  // src/routes/api/[table]/+server.ts
  import { createKitHandlers, createSqlDataSource, type EntitySchema } from '@svgrid/enterprise'
  import { automations } from '$lib/server/automations'

  declare const schema: EntitySchema
  declare const source: ReturnType<typeof createSqlDataSource>

  export const { POST } = createKitHandlers({ schema, source, audit: automations.audit('tasks') })


• From the database. A Supabase database webhook, or a Postgres trigger that posts the old and new row, hands over both sides of the change. Nothing has to stay in memory, so it suits serverless hosts too:

  // src/routes/api/automations/changes/+server.ts
  import { error } from '@sveltejs/kit'
  import { env } from '$env/dynamic/private'
  import { automations } from '$lib/server/automations'

  export async function POST({ request }: { request: Request }) {
    if (request.headers.get('x-webhook-secret') !== env.WEBHOOK_SECRET) error(401, 'No')
    // Supabase sends { type, table, record, old_record }.
    const change = await request.json()
    await automations.recordChanged(change.table, { before: change.old_record, after: change.record })
    return new Response('ok')
  }


• By reading the table again, when all you know is that it changed: automations.tableChanged('tasks').

Scheduled automations run on tick(). Call it once a minute: from a cron job your host runs against an endpoint, or a timer in a long-running server. Two ticks in one minute run them once.

// src/routes/api/automations/tick/+server.ts: called by your host's cron every minute.
import { automations } from '$lib/server/automations'

export async function POST() {
  const runs = await automations.tick()
  return new Response(JSON.stringify({ ran: runs.length }))
}

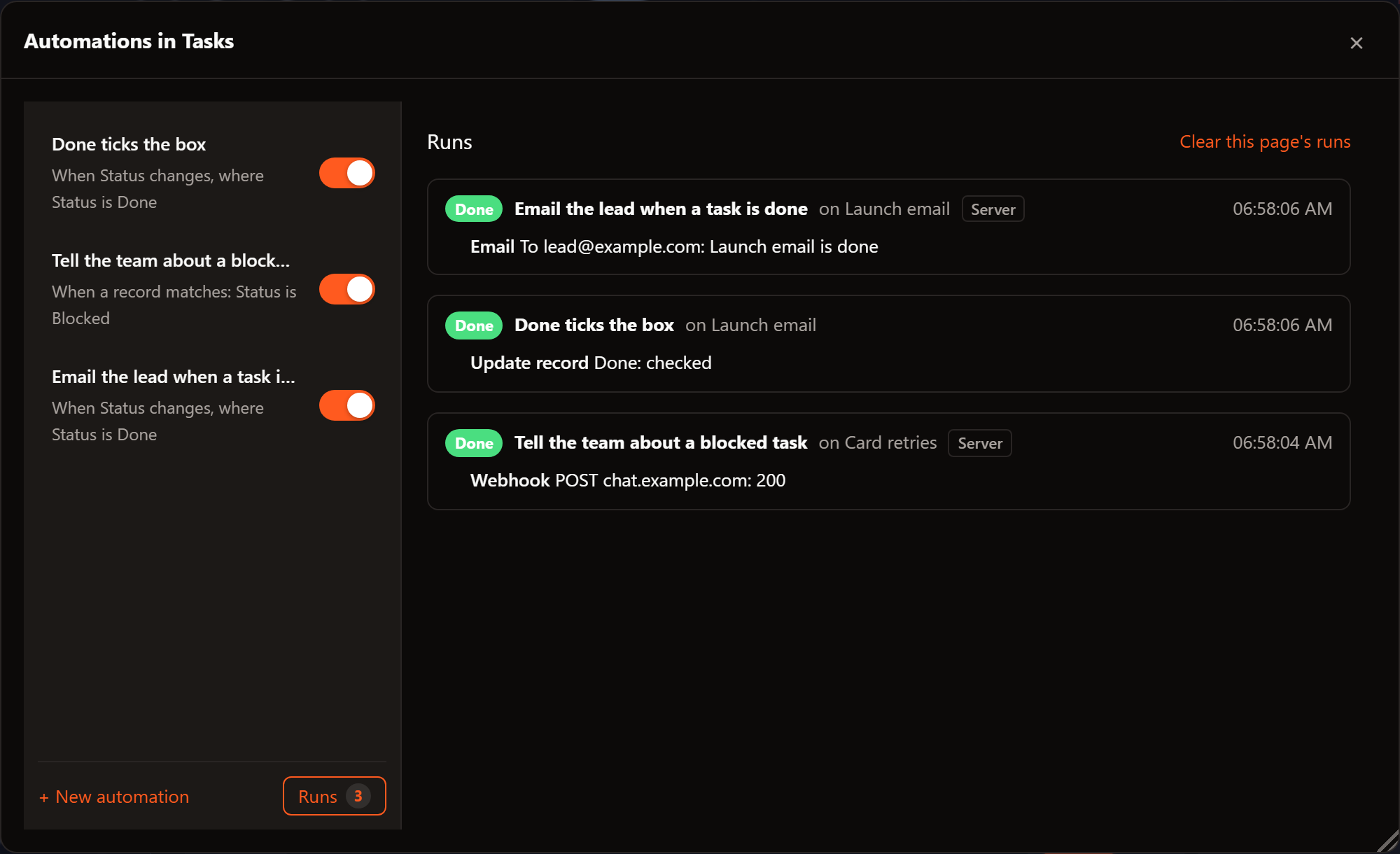

The server's runs show in the dialog next to the page's, tagged Server, when the base can fetch them:

// src/routes/api/automations/runs/+server.ts
import { json } from '@sveltejs/kit'
import { automations } from '$lib/server/automations'

export function GET() {
  return json(automations.runs)
}

<SvBase bind:tables editable serverRuns={() => fetch('/api/automations/runs').then((r) => r.json())} />

The server ignores the echo of its own writes (the webhook the database sends for a change it made), so one change runs each automation once.

The Postgres demo runs a server in the page, standing in for yours: set a task to Blocked and its chat message shows under "Sent by the server"; run update tasks set status = 'Blocked' where id = 't9' and it runs for that change too.

See also

• Keep a base in a database
• Field types: the view bar's filter, which conditions use
